GRENTON ROLLER SHUTTER x3, DIN, TF-Bus
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
$158.00
/pc
Share:
Top Selling Products
GRENTON ROLLER SHUTTER module allows to control shutters or roller shutters drives (e.g. external blinds, internal blinds, curtains, curtains, awnings).
Properties
- equipped with three relays control pairs (up / down, left / right)
- controls the operation of 3 drives (roller shutter, blind, awning, etc.)
- enables the control of a drive with a maximum power of 690VA per channel
- supports 230V AC drives
- has a predefined methods for controlling roller shutters / blinds
- enables smooth opening control
- powered directly from the system bus with 24V DC
Technical Information
- DC power supply: 24 V
- maximum power consumption: 2.4 W
- maximum device current(@24V): 100 mA
- output type: 3680VA, NO, inrush 117 A
- maximum channel load: 690 VA
- maximum wire cross section: 2.5 mm²
- weight: 102 g
- size (DIN): 4
- dimensions (h/w/d): 58/71/90 mm
- operational temperature range: 0-45 °C
There have been no reviews for this product yet.
Related products
$269.00
GRENTON GATE ALARM, DIN, Eth
$290.00
GRENTON GATE HTTP, DIN, Eth
$144.00

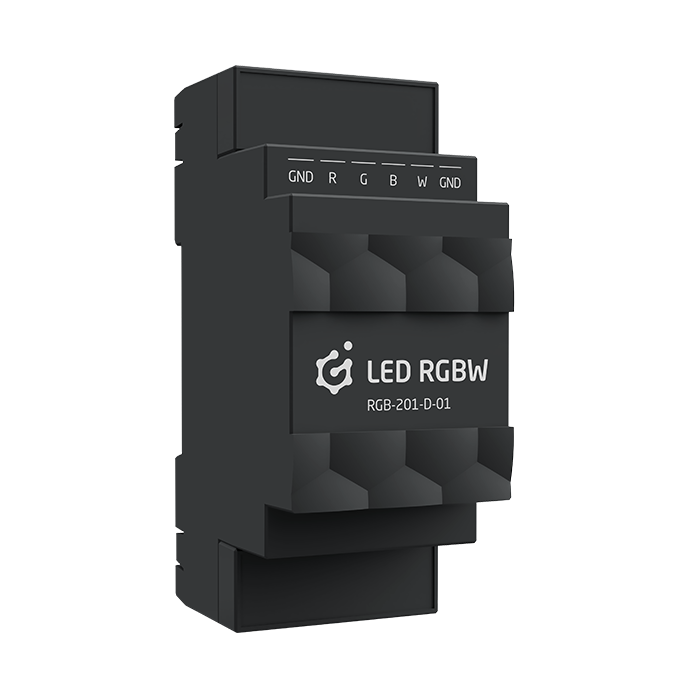

GRENTON LED RGBW, DIN, TF-Bus
$131.00

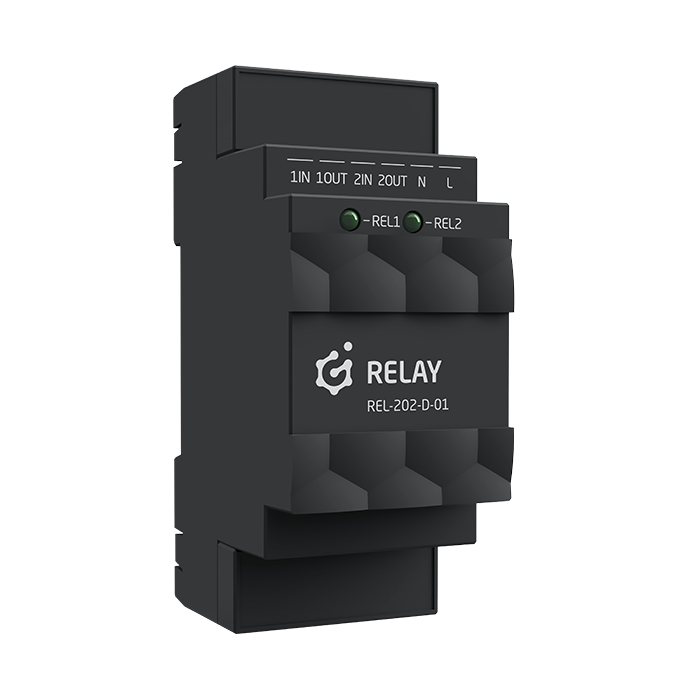

GRENTON RELAY 2HP, DIN, TF-Bus
$158.00

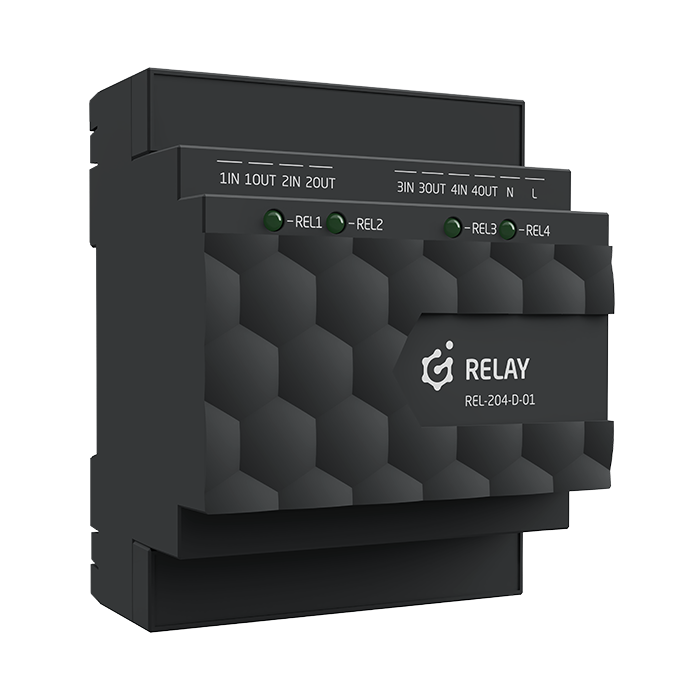

GRENTON RELAY 4HP, DIN, TF-Bus
