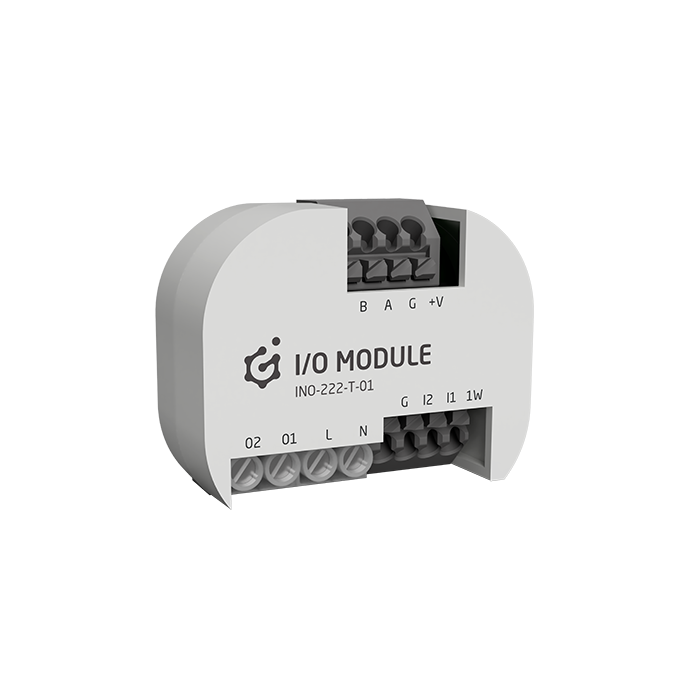

GRENTON I/O MODULE 2/2, Flush, TF-Bus, 1-wire

(0 reviews)

Sold by:
Inhouse product

Price:
$124.00 /pc

Quantity:

Total Price:
Share:

 GRENTON I/O MODULE 2/2 provides the on/off switching functionality of 2 independent devices in an intelligent home (e.g. control of lamps, valves, an entrance gate or recuperator). Additionally, it allows to connect 2 independent elements containing a contact input (e.g. classic switches, motion, smoke or flood sensors).



Technical Information

  • DC power supply: 24 V
  • maximum power consumption: 0.96 W
  • maximum device current(@24V): 30 mA
  • znamionowe napięcie obciążenia obwodu AC1: 1,5 A / 230 Vac
  • maksymalna moc łączeniowa AC1: 350 VA
  • typ przekaźnika: NO, inrush
  • maximum wire cross section for outputs: 2.5 mm²
  • maximum wire cross section for inputs: 1.5 mm²
  • weight: 30 g
  • dimensions (h/w/d): 19/45/36 mm
  • operational temperature range: 0 – 45 °C
There have been no reviews for this product yet.
